Hose Reel Manual Rewind Vehicle Mount 30m

Name: Hose Reel Manual Rewind Vehicle Mount 30m
SKU: HR3019VM
Availability: InStock

HomeShop...Bush fire fire hose kitsHose Reel Manual Rewind Vehicle Mount 30m

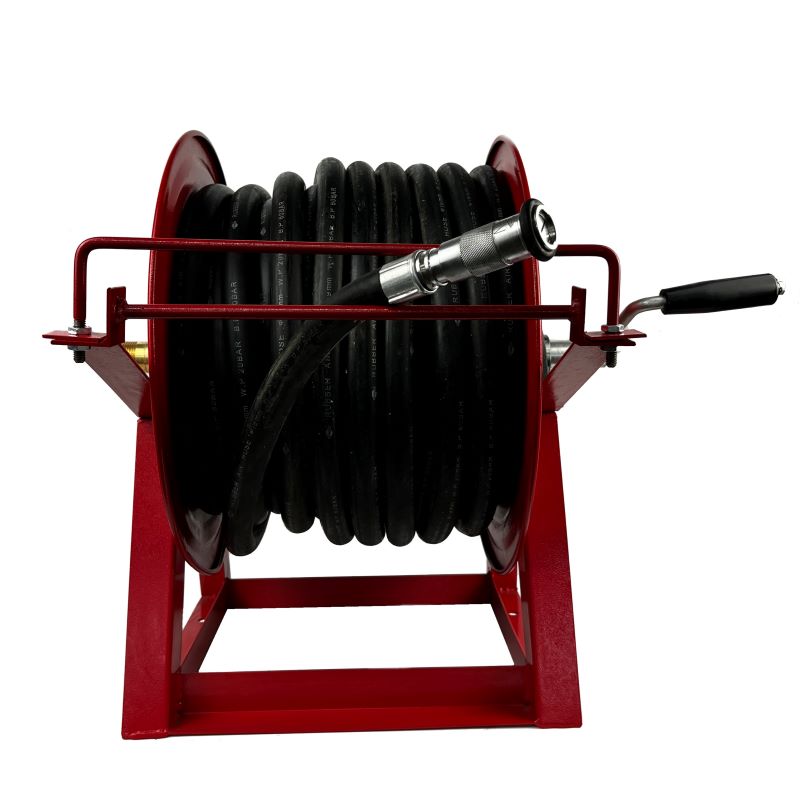

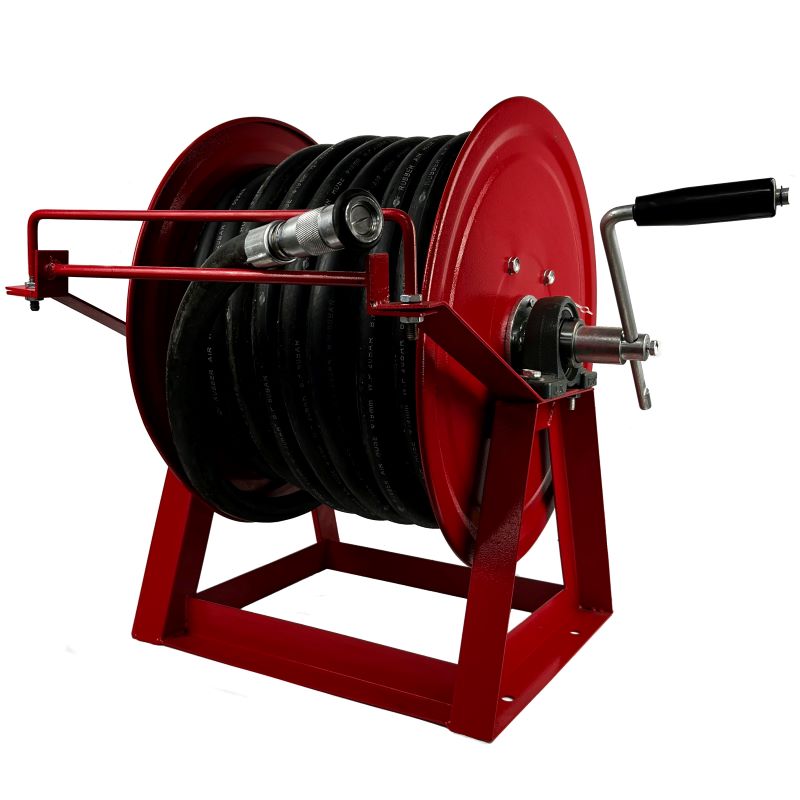

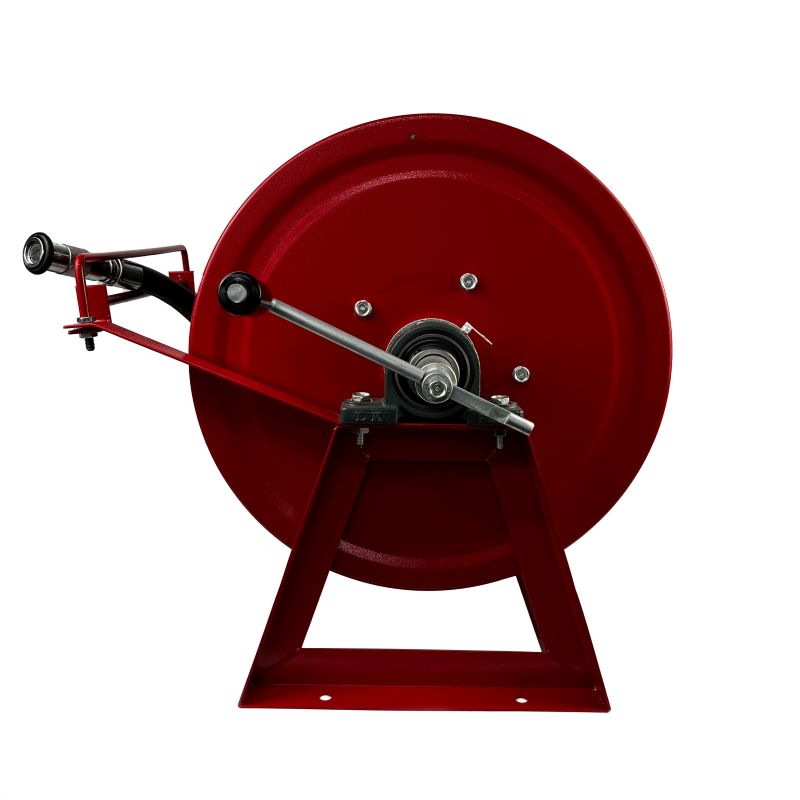

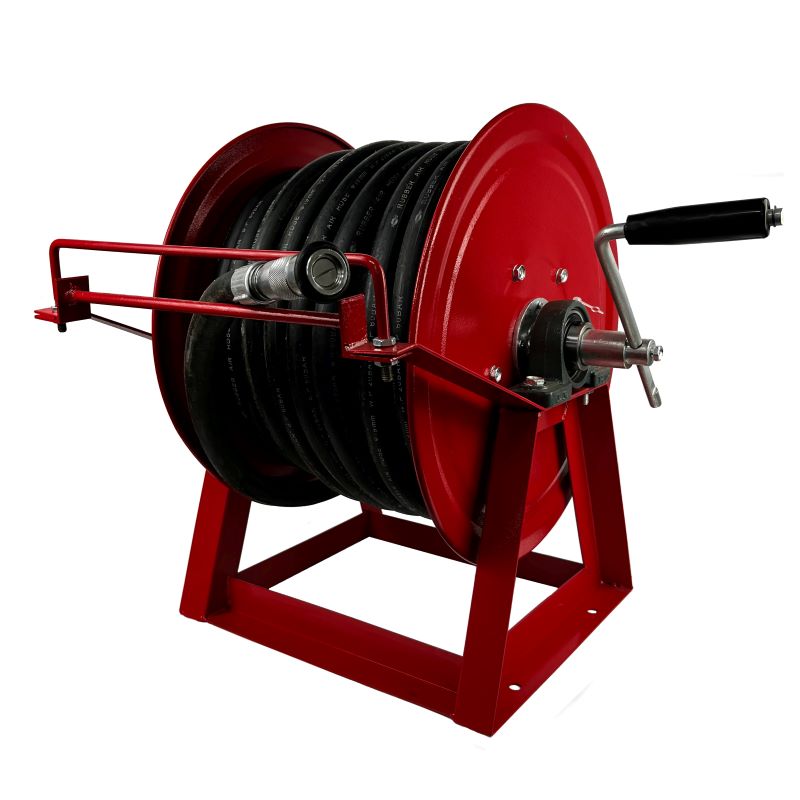

Hose Reel Manual Rewind Vehicle Mount 30m - Image 3

Hose Reel Manual Rewind Vehicle Mount 30m

Part No: HR3019VM Categories: Bush fire fire hose kits, Bushfire / forestry equipment, Bushfire & safety equipment, Fire fighting equipment, Fire hose reels, Fireout fire hose reels Product ID: 22876

End User Price: $704.00 inc. GST

Designed to be mounted on light trucks or trailers, this hose reel incorporates high quality, durable core components in an economical package suitable for rural land owners and community fire trailers. The hose reel is easily deployed and operated by a single person. See Product specifications and data sheet tab below for more details.

5 in stock

Whilst this product is currently showing as out of stock it may already be on order and due back in stock shortly. Please Enquire Now to confirm availability.

Fire Protection Companies & Trade Customers please use the Trade Enquiries button to receive Trade Pricing

Trade Enquiries Add to Compare

Description
Data Sheets

Description

Key Features:

Designed to be used with portable fire fighting pumps, the hose reel has a maximum working pressure of 20bar (2000 kPa) and is easily connected with a 25mm (1”) BSP male brass inlet fitting. Fitted with a 30m long premium rubber hose to resist kinking and a plated brass jet, spray, fog nozzle this unit is fully pressure tested once assembled.

Body Construction: Powder coated 1.5mm pressed steel drum and 2mm x 40mm steel angle frame

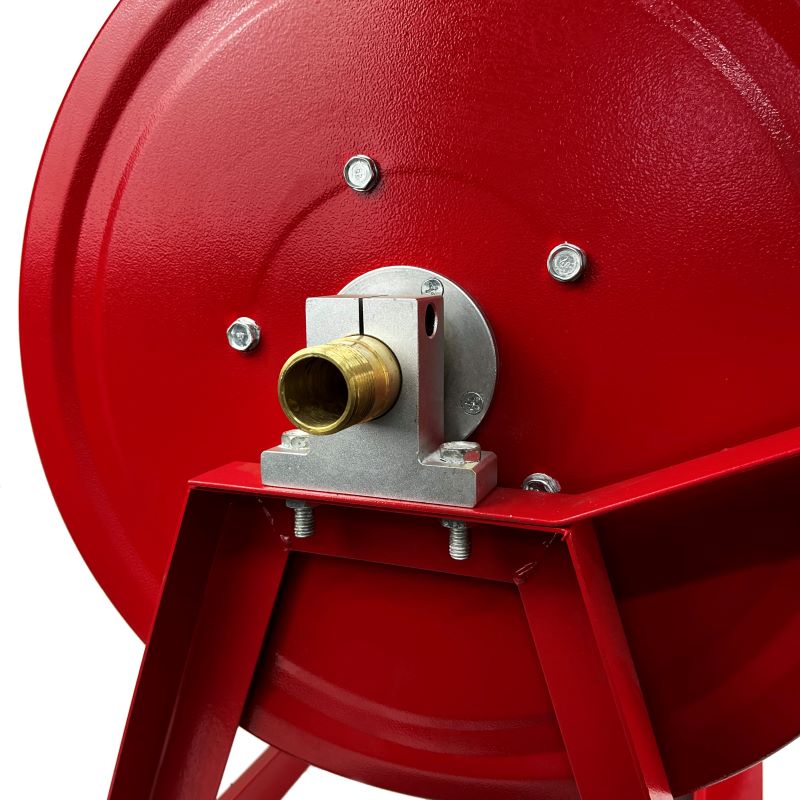

Inlet Fitting: Brass 25mm (1”) BSP male sealed swivel mechanism with internal gooseneck connection
Rewind Handle: Galvanised Steel, adjustable and foldable with swivel handle sleeve
Rewind Shaft Bearing: Fitted with grease nipple
Hose: 30m long 19mm ID black rubber WP 20bar (2000 kPa) Burst Pressure 60bar (6000 kPa)

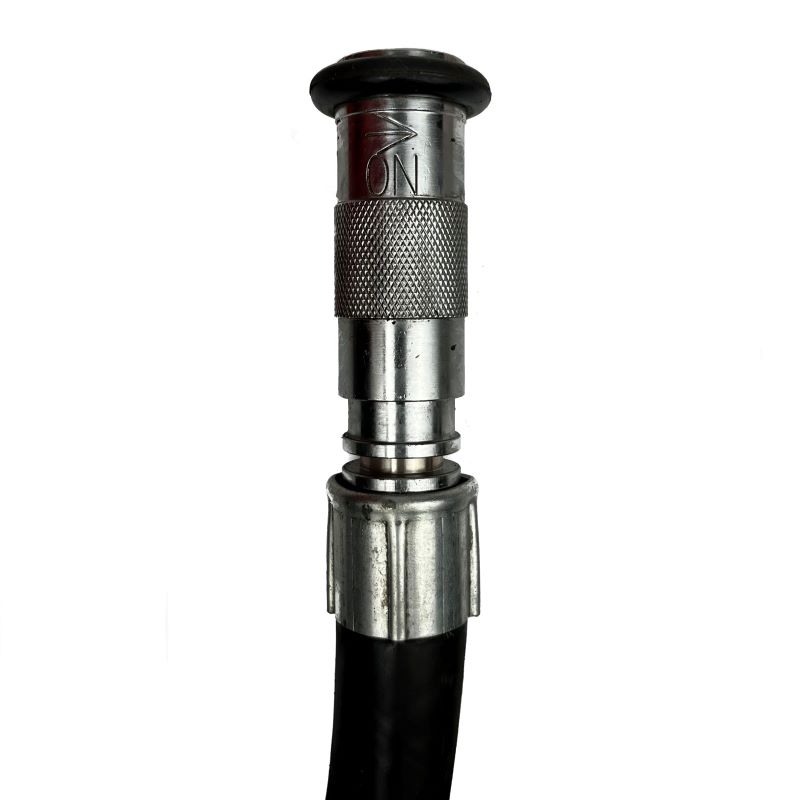

Nozzle: Plated brass jet, spray, fog twist type operation
Mounting: Designed for horizontal mounting only. 4 x pre-drilled 12mm holes in base
Manufacture Test Pressure: 30bar (3000 kPa)
